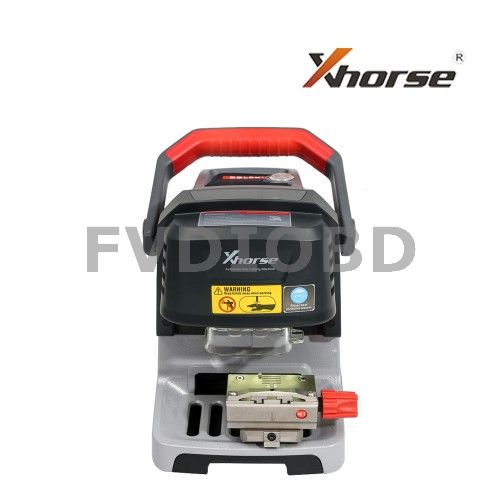

Xhorse Condor DOLPHIN XP005 Automatic Key Cutting Machine English Supports IOS & Android

V1.2.7 Original Xhorse Condor Dolphin Key Cutting Machine Supports IOS & Android

DOLPHIN-XP005 is the latest portable automatic key cutting machine with in-built battery inside.

It has all the capabilities of Condor XC Mini.

Dolphin works on mobile phone application via bluetooth connection.

M1/M2 Jaw comes as standard.

M3/M4 Jaw comes as optional purchase.



Condor Dolphin Version: Update Online

V1.2.7           (2019-11-6)

* This version need to update firmware
* Fix some bugs
* Optimization the slope of track internal
* Optimization the slope and flat of VA2T
* Modified the tail file of HON66 and HU66
* Fixed the top abrasion invalid problem
* Fixed the M1 clamp key cutting error
* Fixed secondary processing cutting problem
* Fixed the cut problem of the customize key data
* Fixed firmware upgrade instability problem
* Fixed the cutting problem of FO21
* Fixed cutting problem of 4 Track external
* Add bluetooth error remind function


Dolphin XP005 Key Cutting Machine Features:

APP smart cellphone operation
Built-in Bluetooth function, use smart cellphone or tablett to download APP, easy for smart operations

Portable and convenient
Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience

Standard equipped 2 clamps M1 and M2 with powerful function
Supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single sided house-key.

Manufacture Process
All aluminum body structure, Manufactured by Germany-made DMG CNC machine;

American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

Online update
Free online update software, the latest update information will be released timely, 24hours support server online update, no need to send back for update.

Technical service
One-year warranty, free technical support, online service to provide remote control support

Condor Dolphin Key Cutting Machine Parameters:

Working temperature: -10~50℃
Input voltage:12-24V
Battery capacity: 64.75wh
Cutting power: 100W
Standby power: 15W
Motor Rotation Speed: 10000-13000RPM
Rated torque: 0.15 Nm
USB Port: USB2.0
Machine Dimension: 315*218*270mm
Package Dimension: 510*315*345mm
Net Weight: 15kg
Gross Weight: 18kg


Condor XC-Dolphin vs Condor XC-Mini

Condor XC-Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet to install APP and get software Data.

index	Condor DOLPHIN	Condor XC-MINI
Spindle	Mechanical shaft +60W DC motor (with a foreign model)” “Electric spindle brushless 300W, built-in angular contact bearing	Electric spindle brushless 300, built-in angular contact bearing
Transmission mechanism	“T-shaped screw + anti-backlash nut	Ball screw
guide	Roller guide	Cross-track
shell	Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting.	Plastic outer casing body is formed by body alloying die casting
Fixture	Standard fixture	Two sets of standard fixtures
Manipulation	No touch screen, no built-in database	Quick start, with touch screen, built-in database
Offline operation	not support	stand by
Dedicated app	Support dedicated mobile APP	Support dedicated mobile APP
Built-in battery	Yes	Yes
protecting mask	Simple protective cover	Comprehensive protection
VVD binding	Yes	Yes
Cutting speed	1X SPEED	2X SPEED
weight	18kg	18kg
Warranty	1 year	3 years
