(VIP price) 2022 Xhorse VVDI Key Tool Max PRO Combines Key Tool Max and Mini OBD Tool Functions Adds CAN FD, Voltage and Leakage Current Functions

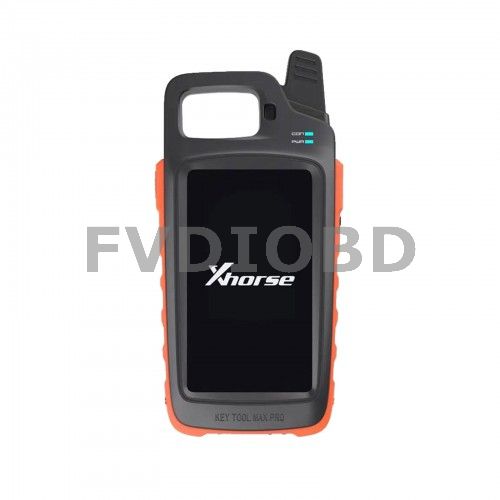

2022 Xhorse VVDI Key Tool Max PRO Remote Maker and Key Programmer


Xhorse VVDI KEY TOOL MAX PRO is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse key cutting machines. It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset.

Hightlights:

• with Built-in OBD module, Combines functions of Key Tool Max and Mini OBD Tool
• Comes with integrated CAN FD for GM vehicles and All in One
• Adds battery voltage measurement, and leakage current measurement
• Supports Toyota H all keys lost with 8A AKL adapter
• Control Xhorse Condor/Dolphin key cutting machines
• App Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese (App language has no limitation. Free to switch now, database language is English)

The brand new Key Tool Max Pro from Xhorse comes with all the features of the existing Key Tool Max but with much, much more!

Designed with locksmiths in mind this device has all the staple featues of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

This new device comes complete with an OBD cable allowing programming directly through the Key Tool Max Pro rather than needing a separate programmer. It also means the device receives power over OBD so you don't need to worry about losing charge on the job!

Functions:

• Immobilizer programming
• Service reset
• Generate remote
• Clone remote
• Generate transponder
• Copy transponder
• Generate special function
• Unlock/Renew remote
• Identity/Copy ID card
• Generate/Copy garage remote
• Detect frequency
• Detect remote battery/voltage

Newly Added OBD Module

KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo programming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

Built-in CAN_FD Module, Expanded Function

Concerning immo programming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo programming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

Battery Test Module

Combining the needs of automotive locksmiths with our innovations, KEY TOOL MAX PRO features a new battery test module. By simply connecting to the leakage detection cable, users can test whether a remote battery is having electric leakage (range: 1μA~35μA) and detect the voltage of a remote battery (range: 0V~36V).

NEW - BMW CAS3/Toyota Models Programming

To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add programming feature of BMW CAS3 and some Toyota models soon. Like always, Xhorse offers continuous upgrades on this very new machine and more can be expected!


Parameter
Battery: 3375mAh
Standby: >5 Days
Inoput: 1.5A
Light: >400nits
Screen Resolution: 1280*720P
Camera: 800W
WiFi& Bluetooth: 802.11a/g/g/n/ac & 4.2 BLE

Xhorse VVDI Key Tool MAX PRO vs Key Tool Max

Item	Xhorse Key Tool Max	Xhorse Key Tool Max Pro
CPU	Quad core CPU	Quad core CPU
RAM	1G+8G	1G+8G
OBD module	External Mini OBD Tool	Built-in
CANFD module	No	Yes
OBD Power Supply	No, power by USB only	Power by OBD or USB cable
Battery Voltage Test	No	Yes
Software
Immobilizer programming	With Mini OBD	Built-in
Cadillac CT4/CT5 CAN FD	No	Yes
Buick GL8/ ENCLAVE CAN FD	No	Yes
Chevrolet Cavalier / Trax  CAN FD	No	Yes
Service Reset	With Mini OBD	Yes, built-in
Generate remote (remote, smart card, Toyota XM remote, garage remote)	Yes	Yes
Copy remote	Yes	Yes
Identify/copy chip	Yes	Yes
Generate chip	Yes	Yes
File make key (Immo data tool)	Yes	Yes
Other special functions	Yes	Yes

Package Includes:

1pc x KEY TOOL MAX PRO deivce
1pc x OBD to DB15 cable with light
1pc x Remote programming cable
1pc x Leakage detection cable
1pc x USB cable
1pc x User Manual
