Immo Emulator for VAG

SKU

V008

$7.00

In stock

VW immo emulator

Quantity:

Weight: 0.05kg

Shippping:

Calculate Shipping Cost

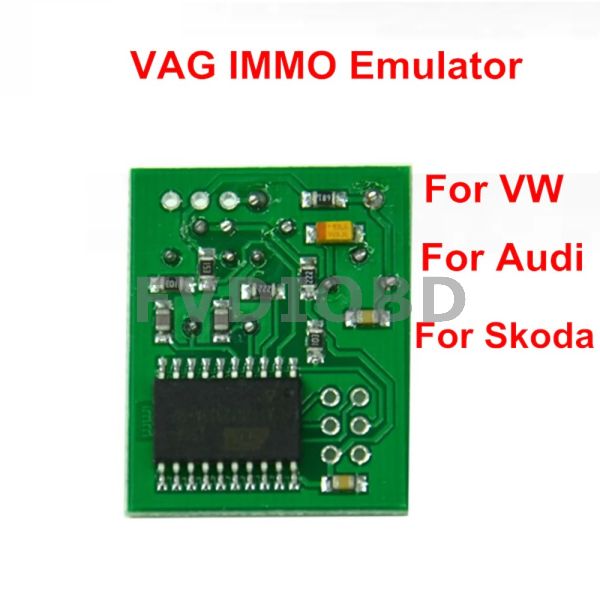

V-A-G IMMO Emulator

Connection diagram:
vag immo emulator

For cars with separated immobilizer box, short W and K lines and remove immobilizer box.

For cars with dashboard immobilizer, cut W line from dashboard

VW Golf III, Passat B4

Immobilizer box side

vag immo emulator connection

VW Sharan 98, Lupo 98, Polo 98, T4

Immobilizer box side

VW LT 35

Immobilizer box side

Audi 100, A6, A4, A8

VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6, TT

GND --- Dashboard Blue connector pin 24

K --- Dashboard Blue connector pin 25

W --- Dashboard Green connector pin 5

IGN +12V --- Dashboard Blue connector pin 1

Package including:

1pc x V-A-G IMMO Emulator
