OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version with Free Gift
OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version

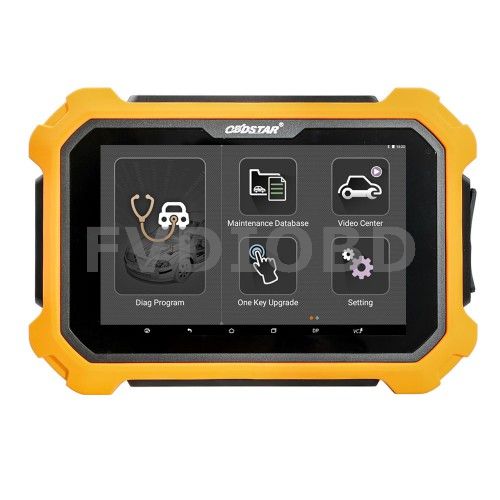

OBDSTAR X300 DP Plus is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.
Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.
Free Update Online for one year, after one year, it will cost $285 per year.
OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version Functions:
Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)
OBDSTAR X300 DP Plus Hardware Features:
1. The built-in VCI box offers more stable communication.
2. The 8" touch screen offers better vision experience.
3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.
4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve
6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
7. Comes with Toyota Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
9. Adds the clip for reading SOP 8PIN EEPROM.
10. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).
OBDSTAR X300 DP Plus Software Features:
1. Clone ECU
Clone ECU means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.
When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won't need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.
ECU clone Pros :
No need to go to 4S shop, convenient, fast and save money.
Simplify the operating steps, even the amateur can also operate.
No need to dismantle and weld the ECU to read & write, it is zero risk to clone ECU via OBD with the X300 DP Plus.
2. Switch activation function
Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.
3. Adds the "Help" function including the testable car models, update notice, special features, help instruction, wiring diagram etc.
Testable car models: The user can read the testable car models and year.
Update notice: The user can read all of the update content.
Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
Help instruction: Built-in the guide and instruction for each car model or function.
Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.
4. Maintenance database: equipped with powerful database.
5. Video center: large amount of videos help users to operate device easily.
6. One Key Upgrade: built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
7. System setting: set VCI formation, language, unit, data logging, user information etc.
8. Remote assistance: achieve remote assistance by this function.
9. Report center: record maintenance data logging and create reports during operation.
10. USB Inspection Camera (optional): Flexible and long pipe with HD camera, it can reach car interior pipeline or narrow space to have an overall inspection
OBDSTAR Update Information:
OBDSTAR X300 DP Plus Update 04.04.2019
Oil Service Reset [V32.11]
Increased 2018- Porsche Panamera and Cayenne
Latest Maserati & Renault IMMO Upgrade 04.01.2019
Increased 2016-RFHUB IMMO data (25640/9560) reading via OBDII(No need pincode)
Increased 2014-TRAFIC Key Programming
Increased 2008-MASTER Key Programming
Increased 2014-LOGAN new version key programming
Increased 2014-TWINGO new version key programming
Latest Upgrade on 03.20.2019
Maserati 2016 Smart Key System
Chevrolet Colorado Hour 2017 Smart Key System
Chevrolet 2017-2018 Colorado Smart Key System
Cluster Calibration Upgrade:
Bentley Mulsanne 2012
Chevrolet Colorado 2018
Chevrolet Colorado Hour 2017-
Latest Cluster Cablibration Upgrade on 12.03.2019
FUSION HYBRID 2017
Lincoln MKZ 2017
ENDEAVOUR 2015 SC667351+93C86
POLICE INTERCEPTOR 2016
Latest Cluster Cablibration Upgrade on 28.02.2019
Discovery 4 2016-
Range Rover Sport 2016 (with pointer)
XE series 2016
XF series 2015-
Upgrade on 16.01.2019
Transit 2014-remote programming
CX4 2018 smart key system
Atenza 2018 smart key system
Cadillac 2017-CT6 smart key system/Cluster calibration
Cadillac 2017-XT4 smart key system/Cluster calibration
Chevrolet 2017-Corvette smart key system/Cluster calibration
Special Function Upgrade on 04.01.2019
G series 8HP gearbox reset via OBDII
M70 IMMO systme
Increased Durango 15-17
Read Pin code via OBDII,and key and erase key function
Increased Grand Cherokee 16-17
read Pin code via OBDII,add key and erase key function
Clio 4 2016- key programming (No need pincode)
Captur 2016- key programming (No need pincode)
Wingle 5 BCM(Remote)
Hover H4 smart key system
Greatwall C30EV BCM (Remote)
Hover M6 -2017 BCM (Remote)
H5 commemorative edition BCM (Remote)
Hover H6 Sport (CHB022) smart key system
Hover H2S SIIC Transportation IMMO system
Hover H6 (blue logo) Delphi and UMC BCM (Remote)
Cluster Calibration Upgrade on 28.12.2018
Increased RAM-700 2015
Increased Pacifica 2017
Increased Compass 2018
Increased Commander 2017-2018
OBDSTAR X300 DP Plus vs OBDSTAR X300 DP PAD:
OBDSTAR X300 DP Plus have back holder,it can work separately without VCI and Charged by OBD2.
4 Toyota emulators
Wiring harness for new functions,such as ECU cloning and switch activation
ECU clone switch activation function
Help function-covers built in support car list,upgrade announcement,help notes and wiring diagrams
No need pay for software update ofr free during the valid time (one year)
OBDSTAR X300 DP Plus Software Update Instruction:
Tap "One Key Upgrade" to enter one key upgrade page, as following picture shown:
Tap “One Key Upgrade” to start downloading, enter main interface after finishing downloading. (Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:
Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package: X300 DP plus
