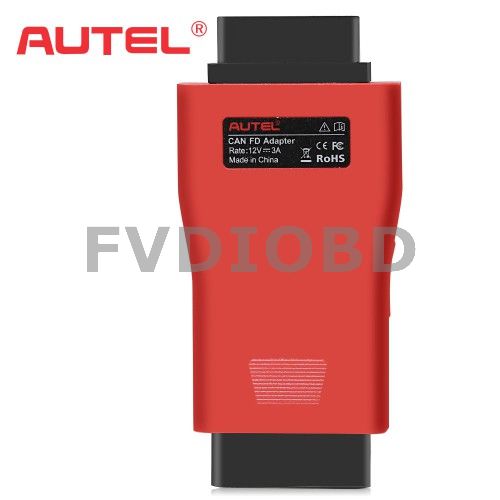

Autel CAN FD Adapter for MaxiSys Series Supports GM Ford 2020

SUPPORT CAN FD PROTOCOL

Designed to support diagnosis of vehicle models with CAN FD protocol, including the MY2020 GM models.


CAN FD Adapter Features:

1. Designed to support diagnosis of vehicle models with CAN FD protocol, including the MY2020 for G-M models.
2. Compatible with a supported Autel vehicle communication interface (VCI) to communicate with applicable vehicles.
3. Small size and easy to carry, superior flexibility and durability.

Compatible with Autel VCI


• Compatible with VCI or VCI/J2534 device included with Gen 1 Autel MaxiSys units: MX808, MS905, MS906, MS906BT, MS906TS, MS908, MS908P, MSELITE
• Compatible with VCI/J2534 device included with the Gen 2 Autel MaxiSys units: MaxiADAS, MS908S, MS908SP, IM508, IM608
• One-year limited warranty

GM
2020+ Corvette
2020+ Cadillac CT5
2020+ Cadillac CTS4
2021+ Large SUVs

Ford
2018+ Expedition/Navigator
2018+ EcoSport
2019+ Ranger
2020+ Transit
2019+ Transit Connect
2020+ Explorer/Aviator
2020+ Super Duty
2020+ Escape/Corsair

 CAN FD Adapter not required for Autel Gen 3 units: Ultra, MS919 or MS909.



IMPORTANT!

• 1. The CAN FD Adapter is currently compatible with Autel's MaxiFlash Elite J2534-VCI, Wireless Diagnostic Interface, VCI 100 and VCI Mini.

• 2. Prior to use, update the VCI with the latest firmware.
•  ( To update the VCI, use the power supply and plug in the MaxiSYS tablet to electrical outlet. Attach the supplied USB cable to the MaxiSYS tablet. Tap the VCI icon on the Tablet toolbar. Next, tap the VCI firmware version and if an update is available, tap Update for the new version to install. A progress bar will display as the update is installed. Once completed, follow the instructions displayed and reboot the VCI by deteching the USB cable from the VCI and then plug the USB cable back into the VCI. The tabler will then connect to the VCI. A message will display once the VCI update is completed.)



How to Use Autel CAN FD Adapter?
