JLR V143 SDD Mangoose 2013D VIDA for Volvo V9.30.002 TIS Techstream for Toyota 3 In 1 Scanner

SKU

EC078

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$33.00

In stock

JLR Mangoose 3 IN 1 support Jaguar and Land Rover Support till 2014 year vehicle, support Toyota vehicle till 2014 and Volvo vehicle till 2013 year. JLR Mangoose 3 IN 1 is a tool used together with VIDA all-in-one to communicate with vehicles. Communication makes diagnosis and troubleshooting possible, as well as downloading software.

After order, please contact us for PAYPAL account.
for wholesellers, we have VIP price, please contact us by WhatsApp: +8618825246286

Quantity:

Weight: 0.2kg

Shippping:

Calculate Shipping Cost

Categories: Auto ECU Tools, Auto Tools, for VOLVO, for Land Rover, for TOYOTA

Details

JLR V143 SDD Mangoose 2013D VIDA for Volvo V9.30.002 TIS Techstream for Toyota 3 In 1 Scanner

This Item is the Combination of JLR Mangoose, Volvo VIDA for Volvo and Tis Techstream for Toyota.

JLR version after V137 do not support offline programming, you can do the online programming

Comparation between JLR Mangoose Serial:

Item Number	SP116	SP205	SP205-B	SP216
Color	Blue	Blue	Blue	Orange
Support Vehicles	Jaguar and Land Rover 2005-2014	Land Rover and Jaguar from year 2005 to 2014	Land Rover and Jaguar from year 2005 to 2014	Jaguar from 2005-2014 Land Rover from 2005-2014 Toyota from 1996-2014 Volvo from 1996-2013
Language	English, German, Russian, French, Dutch, Portuguese, Japanese, Spanish, Italian and Simplified Chinese	English(United States), French, German, Italian, Japanese, Portuguese, Russian, Spanish, Dutch and Simplified Chinese	English(United States), French, German, Italian, Japanese, Portuguese, Russian, Spanish, Dutch and Simplified Chinese	English(United States),French(Standard),German,Italian, Japanese, Korean, Portuguese,Russian, Spanish,Dutch,Chinese(Simplified)
Software Version	JLR SDD V143	JLR SDD V143	JLR SDD V143	JLR: V143 Volvo: 2013D Toyota: V9.30.002
Update	Via CD	Via CD	Via CD	Via CD
PC OS Requirement	Win7 and Windows XP	Win XP/Win 7/Win 8( Not all WIN 7/WIN 8 system can install JLR SDD V143)	Win 7	Windows XP
Notes: 1.Disconnect with internet when you use it 2. JLR SDD Software version after V137 do not support offline coding, but can support online coding

Support Vehicle List:

Jaguar from 2005-2014

Land Rover from 2005-2014

Toyota from 1996-2014

Volvo from 1996-2013

Software Version:

JLR: V143

Volvo: 2013D

Toyota: V9.30.002

Features and Benefits:

1. Data Lists

2. Active Tests

3. Monitor

4. Utility tests

5. Reprogramming

6. Diagnostics Trouble Codes

7.DICE - Diagnostic Communication Equipment, is a tool that is used together with VIDA all-in-one to communicate with the vehicle.Communication makes diagnosing and troubleshooting the vehicle possible, as well as downloading software.

8.DICE has an integrated CARB cable, which is connected to the vehicle's diagnostic socket. When connecting to the vehicle, DICE is powered as long as the battery is charged.

9.DICE has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.

10.DICE is equipped with four status LEDs that indicate the status of the software, the USB and Bluetooth communication and the interface to the car.

11. At one end of the unit, there is a DC input where a battery cable or adaptor(12V) can be connected. The adaptor is used when upgrading and troubleshooting the DICE.

12. In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.

13.High performance with ARM cpu inside.

14.High reliability of products using SMD chip, and certified by CE and FCC.

Specifications:

1. Administration - General information, design and function

2. Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety)

3. Service and maintenance

4. Engine with mounting and equipment

5. Electrical system

6. Power transmission

7. Brakes

8. Suspension and steering

9. Springs, shock absorbers and wheels

10. Body and interior - among other things, diagnostics, design and function, repair and spare part information

11. Other - special vehicles, e.g., ambulances, police cars. Components that deviate from standard.

12. Dimensions: 3" x 1.75"

13. J2534 and J2534-1 compliant device driver

14. Commercial Range (0 to +70 C)

15. Operating Voltage: Bus-powered by USB

16. Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device driver

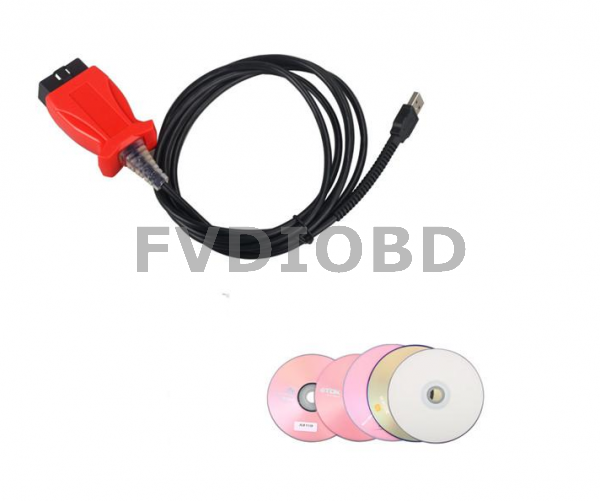

Package List:

1pc x VOLVO JLR Mangoose MVCI 3 IN 1 Cable

3pc x CD Driver

More Information

Weight	0.200000
