(US,UK,German Ship No Tax) Autel MaxiIM IM608 Diagnostic Key Programming and ECU Coding Tool Replaces Auro OtoSys IM600 & MX808IM

  1. Free Shipping.
  2. Autel MaxiIM IM608 Key Programmer, supports the most advanced key programming ,immobilizer,OE-level diagnostics and service functions.
  3. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer.
$3,166.00
Availability: In stock
SKU
AUT242

Please login in to get VIP price. Inicie sesión para obtener el precio VIP.

Пожалуйста, войдите, чтобы получить VIP-цену.

WhatsApp: + 86 15012696165, please feel free to contact.

Download PDFAutel-MaxiIM-im608-user-manual-v1.0.pdf  (1.5M)



Download PDFAutel-maxiim-im608-quick-guide.pdf  (9.7M)



Wifi & Bluetooth Autel MaxiIM IM608 Diagnostic Key Programming and ECU Coding Tool

This MaxiIM IM608 is global version, no IP restriction, all country user can use it.

AUTEL IM608 combines the most advanced key programming and immobilizer experience with advanced automotive diagnostics and service functions, a 10-inch Android-based, touch-screen tablet with the latest in art, the Autel MaxiIM IM608. IM608 A comprehensive, ideal immobilizer and key programming tool for automobile technicians and locksmiths.


Autel have released BMW CAS4/CAS4+ through OBD update!

IM608 adds Oscilloscope & Inspection Camera Function (Feb. 2020)!

This is available for both the Autel MaxiIM IM508 & IM608 as well as the Auro IM100 & IM600.



Autel MaxiIM IM608 Highlights:

1. Free Update Online for 1 Year, after one year, it will cost $1000
2. Warranty for 12 Months.
3. ADVANCED IMMO & KEY PROGRAMMING
4. OE-Level Diagnostic and Service Functions as MaxiSYS Pro
5. with XP400 and MaxiFlash JVCI for ECU Programming
6. Multi-Language: English, French, German, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian and Traditional Chinese.
7. VW Audi V4.10 Released Support MQB All Models Blade Key All Key Lost via OBD!!!

im608-all-system-diagnostic

ADVANCED IMMO & KEY PROGRAMMING

SMART MOD: Explanatory and Router Key Programming
EXPERT MOD: Advanced Key Programming
  • PIN / CS Reading (Full Lost)
  • Key Generation
  • Key Programming
  • Command Introduction
  • Backup / Repair IMMO Data
  • IMMO ECU Brain Reset / Adaptation
  • IMMO ECU Brain Reset / Coding
  • BENZ 3rd Generation IMMO Key Splicing, Full Lost, Key Programming
  • BMW FEM / BDC Key Programming and ECU Adaptation
  • BMW CAS4 / 3/2 Key Programming
  • VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More ...


Key Programming Vehicle Coverage:

Chrysler,Dodge,Ford,GM,Hummer,Jeep,Citroen,Fiat,Jaguar,LandRover,Maserati,Opel,Peugeot,Renault,Saab,Volvo,Volkswagen,Audi,
Bently,Seat,Skoda,BMW,Mini,Honda,Hyundai,Kia,Lexus,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota

Autel MaxiIM IM608 IMMO Vehicle List:
Audi:
A1,A3,A4,A5,A6,RS4,B6,B7,RS5,RS6,A4 Allroad,A8,S8,Q3,RSQ3,Q5,Q7,R8,TT,

Seat:
Alhambra,Altea,Altea,Cordoba,CupraLeon,Exeo,Ibiza,Leon,Mii,Toledo

Skoda:
Citigo,Fabia India,Fabia,Kamiq,Karoq,Octavia,Rapid India,Rapid,Roomster,Superb,Yeti

VW:
Amarok,Arteon,Atlas,Beetle,Bora,BoraGli,Caddy,Crafter,EOS,Fox Africa,,Fox EU,Fox,GTI,Gol County,Gol(5U),Gol(5W),Golf PLUS,Golf/Rabbit(1K),Golf6 ESTATE,Jetta,Parati,Passat,Phaeton,Polo,Scirocco,Sharan,Suran,T-Roc,Tiguan,Touareg,Touran,Transporter5/Multivan,up,UP!/cross UP!

Fiat:
500,500L,500X prox,Albea,Boxer,Daily,Doblo,Doblo New,Ducato,Egea,Fiorino,Freemont,,Idea,Grande punto
,Jumper,Linea,Marea,Nemo,Ottimo,Palio,Palio RST,Panda,Perla,Promaster,Punto,Sinea,Stilo,Viaggio

Check Autel MaxiIM IM608 IMMO vehicle list on official website
https://pro.auteltech.com/measurecarApp-1-1.html?m=94&proTypeCode=IM608(IMMO)&operatorType=2


XP400 SWITCH & CHIP PROGRAMMER
  • PC Supported
  • MCU / EEPROM Chip Read / Write
  • ECU Reading / Writing
  • MC9S12 Encrypted Chip Read / Write
  • Key Reading / Writing
  • Mercedes Infrared Key Reading / Writing
  • Finding the Control Frequency
  • IC Card Reading / Writing
xp400-programmer
xp400-function

DIAGNOSTIC FUNCTION OF MORE THAN 80 VEHICLES IN ADVANCED LEVEL
  • All System Diagnostics
  • Auto Search / VIN Finding
  • Reading / Deleting Error Code
  • Viewing the Live Data Stream
  • View Records of Failure History
  • Store and Data Management Applications
  • MaxiFlash JVCI ECU Programmer (Bluetooth / USB Cable)
im608-vehicle-coverage

ADVANCED SERVICE FUNCTIONS
  • All Special Functions, EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Re-Programming etc
  • ECU Coding
autel-im608-service-function

im600-display


ADDITIONAL FUNCTIONS
im608-adds-Oscilloscope Inspection Camera Function


Autel MaxiIM IM608 Specifications:


Operating System   AndroidTM 4.4.2, KitKat
Processor   Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory   2GB RAM & 64GB On-board Memory
Display   10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity   Wi-Fi (802.11 a/b/g/n/ac)
USB: 2.0
BT v.2.1 + EDR
SD Card (Support up to 32GB)
HDMI
Camera (rear)   8.0 Megapixel, AF with Flashlight
Sensors   Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output   Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
Power and Battery   15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage   12 V (9-24 V)
Power Consumption   6.5 W
Operating Temp   0 to 50°C (32 to 122°F)
Storage Temp   -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)   300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight   NW: 1.42 kg (3.13 lb.) GW: 8.655 kg (19.08 lb.)
Protocols   ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,
GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,
SAE J1708, Fault-Tolerant CAN

Autel IM608 Scanner Packing List:

Package includes:

1pc x APA107 (Connect Cable)
1pc x APA106 (MC9S12 Clamp)
1pc x APA105 (MCU Clamp)
1pc x APA104 (ECU Clamp)
1pc x APA103 (EEPROM Clamp)
1pc x APA101 (Single Cable)
1pc x APA002 (EEPROM Socket)
1pc x APB108 (MCU_FQFP176)
1pc x APB107 (MCU_FQFP144)
1pc x APB106 (MCU_FQFP112)
1pc x APB105 (MCU_FQFP80)
1pc x APB104 (MCU_FQFP64)
1pc x APB102 (MB IR Cable)
1pc x APB101+APD101 (EEPROM Adaptor + EEPROM Adaptor Shell)
1pc x APC101 (USB Cable)
1pc x AAC001 (MED17 Cable)Light Fuse 6*30mm (2pcs)
1pc x XP400 Key Programmer
1pc x MaxiFlash JVCI
1pc x MaxiIM IM608
1pc x AC/DC Adapter (12V)
1pc x Carrying Case
1pc x Quick Reference Guide https://www.auteltech.com/autelcms/Automotive%20Key%20Tools/593.jhtml
1pc x USB Cable
1pc x Cigarette Lighter

AUTEL IM608 FAQ

Question 1:Will this scan tool work in south america the caribbean on japanese and european vehicles?
Answer 1:Yes

Question 2:with im608 can i progremming tcm 2013 ford focust
Answer 2:If the model is equipped with that option/tool then yes it can.

Question 3:With the maxiim im608, can i disable immo iv on volkswagen's? or reprogram a new ecu/ecm?
Answer 3:VW Key programming doesn’t allow you to disable a key. Each time you program a key all keys are deleted and reprogrammed. Yes, it can adapt ECU/ECM but for to an extend.

Question 4:Does it have GPS locator if stolen?
Answer 4:You can record your SN and lock if it stolen

Question 5:How many year free updates
Answer 5:Hi,It comes with 1 year free uodates and 1 year free softeware updating.

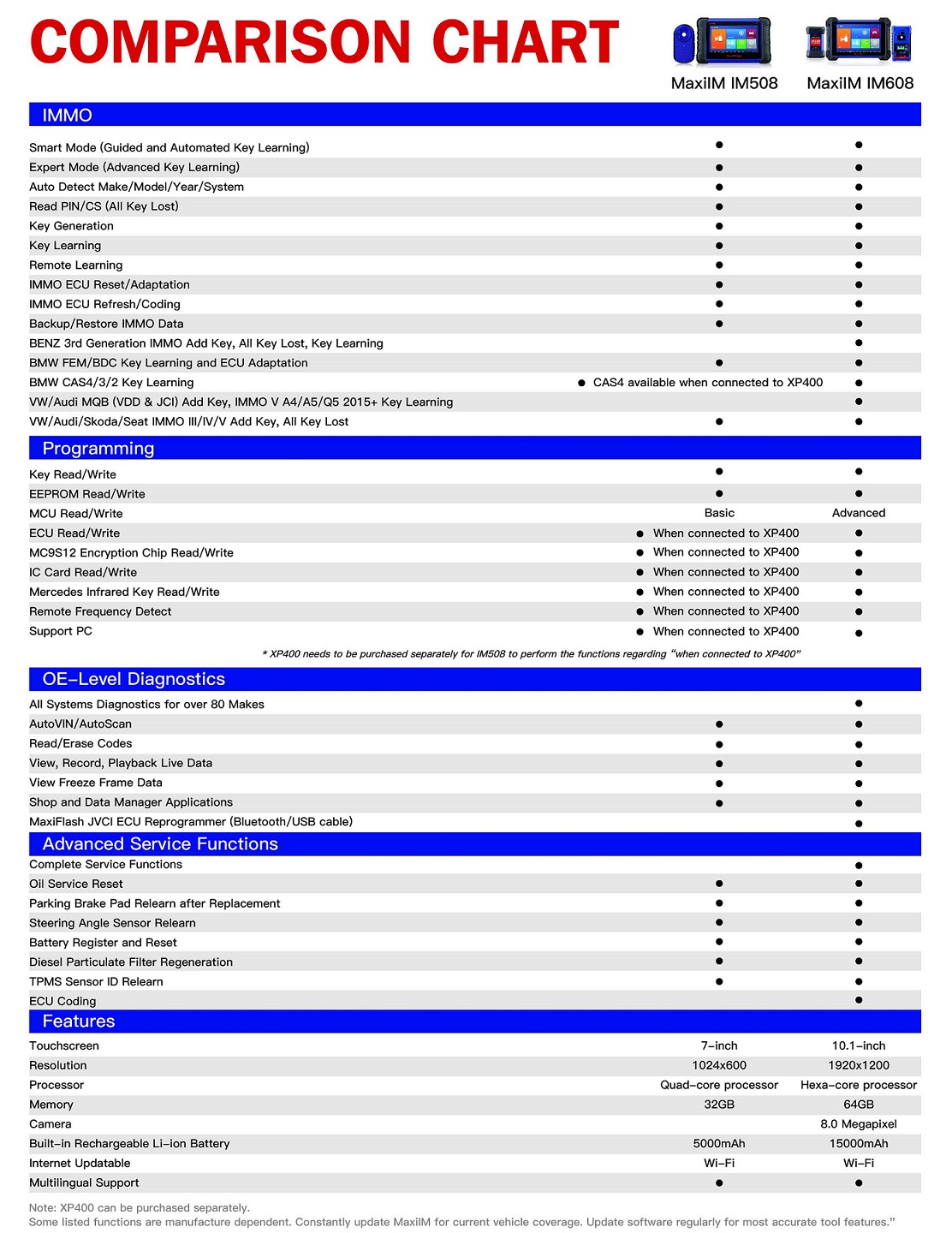

Autel MaxiIM IM608 vs. IM508 Comparison Chart:

Autel MaxiIM IM508

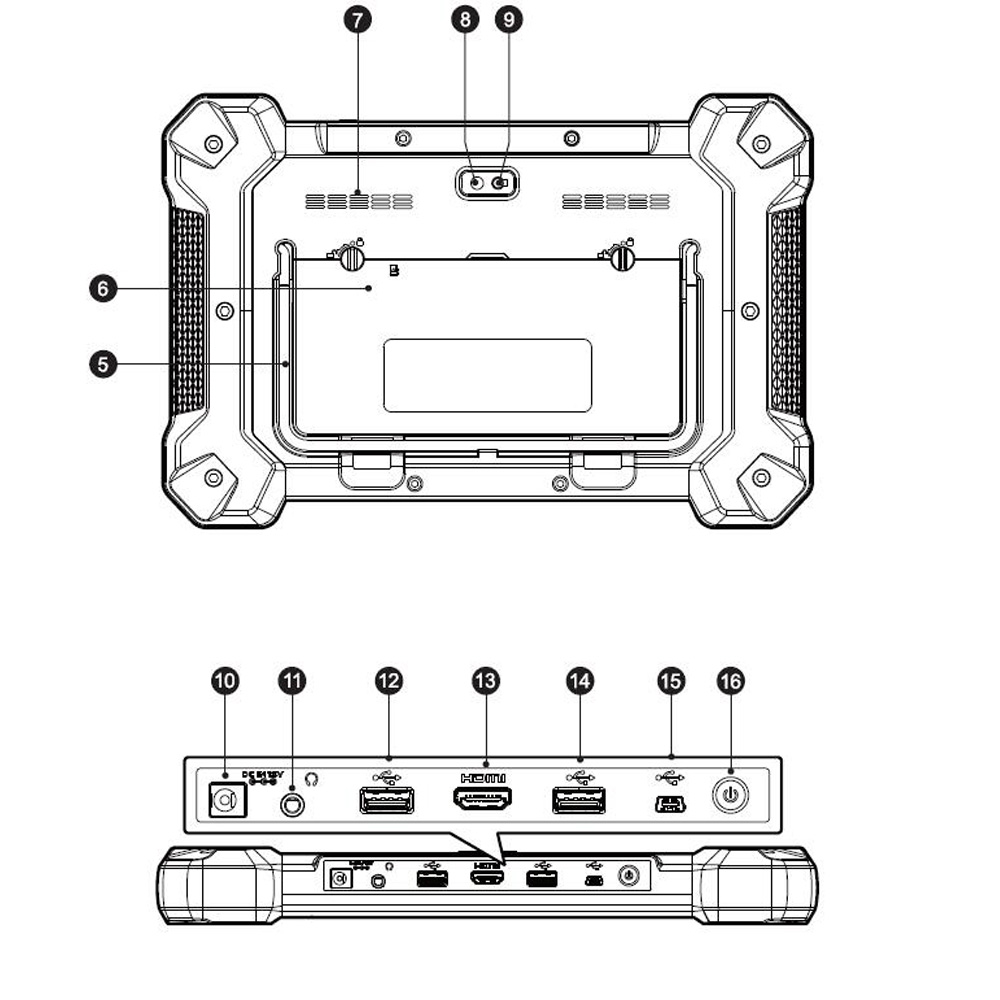

Autel MaxiIM IM608 Main Unit Overviews:



1.10.1-inch LCD Capacitve Touchscreen
2.Ambient Light Sensor-detects ambient brightness.
3.Power LED-indicates battery level & charging or system status.
4.Microphone
5.Collapsible Stand-extends from the back to allow hands-free viewing of the Display Tablet
6.Built-in Bttery
7.Loudspeaker
8.Camera Lens
9.Camera Flash
10.DC Power Supply Input Port
11.Headphone Jack
12.USB Port
13.HDMI (high-definition multimedia interface) Port
14.USB Port
15.Mini USB Port
16.Lock/Power Button-turns the evice on & off with long press,or locks the screen with short press.

How to Update Autel MaxiIM IM608 Software:

Autel IM608 Update application allows you to download the latest released software.
The updates can improve the MaxiIM applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database. The Display Tablet automatically searches for available updates for all of the MaxiIM software when it is connected to the internet. Any updates that are found can be downloaded and installed on the device. This section describes installing an update to the MaxiIM System. A notification message displays if an update is available when the Notifications Center function is enabled in the Settings application.

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.
2. Tap the Update application button from the MaxiIM Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.
3. Check all available updates:
--If you decide to update all the items of IMMO software, select IMMO Tab and then tap the Update All button; if you want to update all items of diagnostic software, select Diagnose Tab and then tap the Update All button.
-- If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).
4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.
5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.
