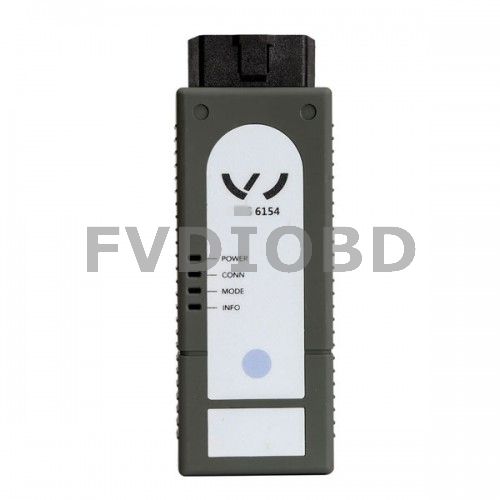

WiFi V-A-S 6154 V-A-S6154 V-A-G Diagnostic Tool VW Audi Skoda with OD-IS 5.2.6 Software licence to 2030 year
WiFi V-A-S 6154 Diagnostic Tool for VW Audi Skoda with OD-IS 5.2.6 Software
V-A-S 6154 Wifi Diagnostic Tool Highlights
- free license untill 2030 year.
- works for VAG all 9 Brands from 1995 to 2019( for V, for AUDI, for SEAT, for Skoda, for Lamborghini, for MAN, for Nutzfahrzeunge (Commercial vehicles), for Bugatti and for Bentley ) !
- Multi-language: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Chinese
- Update by CD: Latest Version OD-IS V6.10
- Operating system: Windows 7/ Windows 10
- Supports WIFI & USB Connection:With wireless communication technology, can achieve wireless communication of the vehicle and diagnostic interface
- Supports VW for Audi for Skoda vehicles from 2000 onward including NEW & FUTURE MODLES under production.
- With OKI Chip, supports UDS protocol
- This V-A-S 6154 Interface is the latest interface for the diagnostic and programming applications VAG OD-IS-S (Service) and OD-IS-E (Engineering), replaces the V-A-S 5054A.
Supports WIFI & USB Connection: With wireless communication technology, can achieve wireless communication of the vehicle and diagnostic interface
V-A-S 6154 Infrastructure Mode:
In infrastructure mode, several network-capable devices can be connected together (network subscribers).
For a wireless network, a WLAN access point is required. This access point forms the connection to WLAN-ready subscribers.
V-A-S6154 Point-to-point connection:
With point-to-point connection via a wireless network, V-A-S 6154 creates a radio network. V-A-S 6154 thereby adopts the role of a radio access point (Access Point). A direct connection is made between the diagnosis unit and the diagnosis interface V-A-S 6154.
V-A-S 6154 is configured using the web-based user interface.
V-A-S-6154 Design and features:
One version includes a wireless network and USB module
One version without wireless network module (the wireless network module can be retrofitted at any time provided national regulations permit).
Radio registration verified for the following countries:
A, AUS, B, BIH, BR, CDN, CH, CY, CZ, D, DK, E, EST, F, FIN, GB, GR, H, HK, I, IL, IND, IRL, IS, J, L, LT, LV, M, MEX,N, NL, NZ, P, PL, RA, RC, ROK, RUS,
S, SGP, SK, TR, UA, UAE, USA, ZA
OD-IS Software Language Available:
English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech,
Russian, Greek, Chinese
Operating system:V-a-s 6154 works perfect with windows 7 and windows XP.
V-A-S 6154 OD-IS 5.2.6 Software New Functions:
– Estimated remaining times are shown for ECU flash operations.
– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,
used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.
– One message box will be shown at the beginning of the test drive mode.
– GFF hotfixes can be integrated during diagnostic sessions.
– Danger messages have been revised.
– Stopping of diagnostic sessions may be interrupted.
– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.
– OD-IS Service Software update has been stabilized
– Support UDS Protocol
If you want to do Seat, Bentley and Lamborghini, please buy V-A-S 5054A with V-A-S-PC V19 Software.
V-A-S6154 Scanner Technical data:
Dimensions: approx. 136x48x25mm
Weight: approx. 150g
Power supply: 8-18V via vehicle connector
Output: approx. 5W
Temperature range: Storage -20°C to +85°C, operation -20°C to +40°C
PC interface (wired): USB 2.0 High Speed, 480 Mbit/s or Fast Ethernet, 100Mbit/s (via LAN module)
PC interfaces (wireless): WLAN 802.11 ab/b/g/n 2T2R 300 Mbit/s Client Mode (WPA2 EAP-TLS, WPA2 PSK)
AP mode (WPA2 PSK)
1pc x V-A-S 6154 Diagnostic interface
1pc x USB cable
What is the difference between V-A-S 6154 and V-A-S 5054A ?
1. Connection method:
V-A-S 6154A: connected via USB, WIFI
V-A-S5054A: connected via USB, Bluetooth
2. Vehicle list:
V-A-S 6154 supports VW, Audi, Skoda vehicles from 2000 year to the newest & future car models;
V-A-S 5054A supports VW, Audi, Seat, Skoda, Bently, Lamborghini.
3. Software compatible:
V-A-S-PC V19: V-A-S 6154 CANNOT support it! use V-A-S-pc v19 with V-A-S 5054A only.
OD-IS: V-A-S 6154 only works with OD-IS 3.0.3 or newer; V-A-S 5054A can work with OD-IS new or old
4. Remote programming:
As for remote programming through V-A-S-PC software, you have to use V-A-S 5054A or V-A-S 5055 head.The V-A-S 6154 cloned head only works with obdii diagnostics and online programming.V-A-S 6154 clone and V-A-S 5054A china clone share the same features:Both working with OD-IS service software crack.
VCX NANO 5054 OD-IS vs. V-A-S 6154 vs. V-A-S 5054A
|Product Name||VCX NANO 5054 OD-IS||V-A-S 6154||V-A-S 5054A|
|Software Version||OD-IS V5.16||OD-IS V5.2.6||OD-IS V4.33|
|Update||Update from download weblink||via CD/email||via CD/email|
|Connection Method||WiFi and USB Connection||Bluetooth and USB Connection
Bluetooth Chip AMB2300, work stable
|Bluetooth and USB Connection|
|Support Vehicle||VW, AUDI, SKODA, Bentley and Lamborghini||VW, AUDI, SKODA, Bentley and Lamborghini||VW, AUDI, SKODA, Bentley and Lamborghini|
|Operation System||WIN 7 32 bits/WIN 7 64 bits||Windows 7 32bit||Windows 7 32bitO|
