VCM2 Pro for FORD and Mazda VCM2 + UCDS+FORSCAN

VCM 2 Pro Include VCM2 + UCDS + FORSCAN All functions Diagnostis Tool

Software Version :

VCM2 IDS :  V120 support future update

UCDS :       2.0.7.1 support future update

Notice  :

1. Don't work for Fo-rd BUS and TRUCK . can work with Original UCDS direclty .

2. After installed , IDS software MUST START WITH  VXLOADER

3. PackageWITHOUTsoftware DVD , we will provide software download link after we ship out the order .

VCM 2 for Fo-rd and Ma--zda Description:

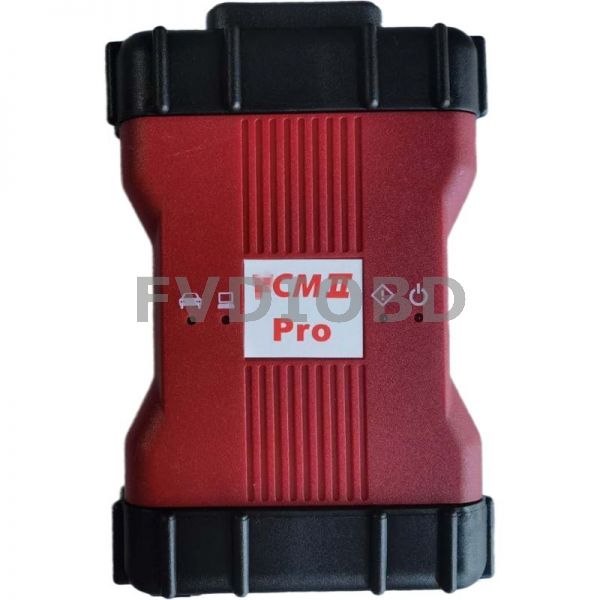

VCMII 2 in 1 is an OEM diagnostic interface for the vehicles of Fo--rd and Ma--zda.
It can be compatible with OEM software of Fo-rd IDS and Ma--zda IDS

VCM 2:

1. FO-RD IDS Version: V120, Ma-zda IDS Version: V119  (support future update)
2. Support virtual machine, Fo-rd and Ma--zda software can be installed on one computer.
3. Support multi-languages: English/German/French/Italian/Spanish/Dutch/Slovenian/Finnish/Danish/Norwegian/Portuguese(European)/Portuguese(Brazil)
4. Update by CD with unlocked firmware
5. Support new and old vehicles.

Software installation:

1. Fo-rd(New lincoln) and Ma-zda IDS software cannot be installed in the same computer at the same time.

2. Install Fo-rd(New lincoln) IDS/ Ma-zda IDS software according to the default path installation (not change the installation path) ,Please Exit or uninstall anti-virus software before installing software.

3. When installing IDS software, install the initial version of the subsequent upgrade patch version. (e.g.110.01,then110.02,110.03......)

4. After successful installation of IDS software, install VCMXLoader startup software and install it by default (check the For-d/Maz-da IDS Programming Menu Patch option unless the computer system reports an error and the prompt point "Confirm" and "Yes" appears)

5. IDS software must be run by VCMXLoader (IDS software can not be started directly) when using IDS. Only by connecting devices can IDS software be run. When running the software, please select the appropriate model (Fo-rd or Maz-da) )

6. Question about online functions when enter the account password interface : if when jump page (the ActiveX controller is not enabled or not installed, please be sure to enable all the ActiveX controller prompts) on this site is typically IE browser has a problem, suggest that install the latest version of Internet explorer and use IE browser setting as the default browser

7. http://xxx.fordservicecontent.com/ford_content/catalog/ids_manuals/IDS_Webdownload.PDF

8. IDS software must start with VCMXLoader.

Requirement on Computer:

1. Computer has at least 4GB Memory
2. Computer need produced after 2000 year, too old computer can not run the software.
3. OS needs to be WIN XP SP3.

VCM 2 for Fo-rd and Ma-zda Function:

1. Programming & Installation of new ECUs (PCM, ABS, Instrument Cluster, Air Bag, Fuel Pumps, etc.)
2. Live Data-stream with Recording & Playback Functions for Main ECUs
3. Read & Clear Diagnostic Trouble Codes (DTCs)
4. Set, Adjust or Remove Speed Governors
5. Automatic vehicle recognition
6. New Software Re-flash for Existing ECUs
7. All Other Dealer Functions
8. Steering Angle Resets
9. Guided Fault Finding
10. Program New Keys
11. DPF Regeneration
12. Brake Bleeding
13. Injector Coding
