VD300 V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function





1. Latest Version: V54

2. Supported Operating System: Windows XP, more friendly than Fgtech v53 , much easier to operate

3. Unlock Version: Can Use Directly. No Need To Activate

4. FGTECH V54 PCB board

5. Supported Languages: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish

6. Support Tricore Function







FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode, checksum.





NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON

Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF

New Delphy DCM3.5xx DCM3.7xx TRW

Motorola Freescale MPC 555/556/561/562/563/564/565

Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB

Motorola MC 68376 Campi 01 Lamborghini - Lotus

Motorola MC 68336 MEMS D5 ROVER

Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG

New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac

New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu





All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso

Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens

Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507

Motorola Freescale MPC 555/556/561/562/563/564/565

Freescale MPC 5553/5554/5565/5566

BDM

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN

Can Bus V2.0 50Kb > 1000Kb

J1850 VPW PWM GM -FORD

Rx Tx RS232,

RS 485,

Automatic setup Pull up K-L line 250, 500, 1000 ohm,

Automatic setup termination Can bus 0, 60,120 ohm,





Recovery Mode Completa

Funzione scan tool per eliminare i DTC

Function scan tool for erase the DTC

Controllo tensione di batteria auto in tempo reale

Check tension of battery car in real time

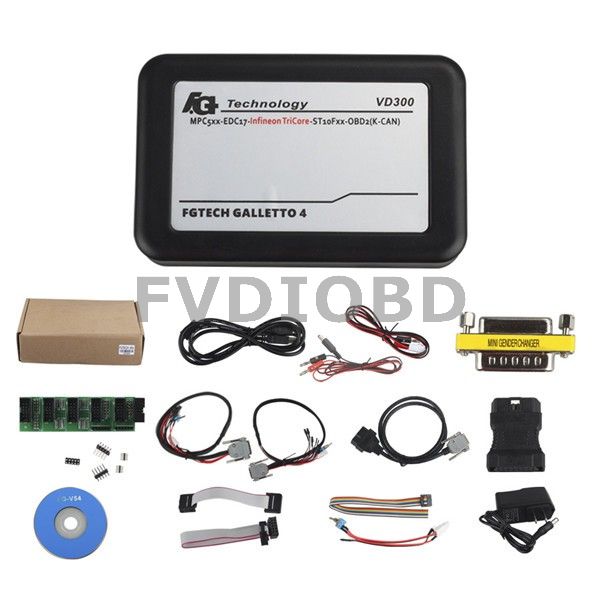

1pc x New Version Main Interface

1pc x ECU Cable for Boot

1pc x Adapter for BDM to CMD with BDM Cables

3pcs x BDM Adapters

6pcs x  BDM Connectors

2pcs x Power Cable

1pc x  OBD2 Cable

1pc x  USB Cable (1.5meter)

1pc x  CD ( SW -MASTER, Documents PDF, Pictures, etc.)
