iOBD2 Diagnostic Tool for Android for VW AUDI/SKODA/SEAT

iOBD2 Diagnostic Tool for Android for VW AUDI/SKODA/SEAT

iOBD2 Diagnostic Tool for Android for VW AUDI/SKODA/SEAT High Diagnostic Speed by Bluetooth

Software Update Free

Description:

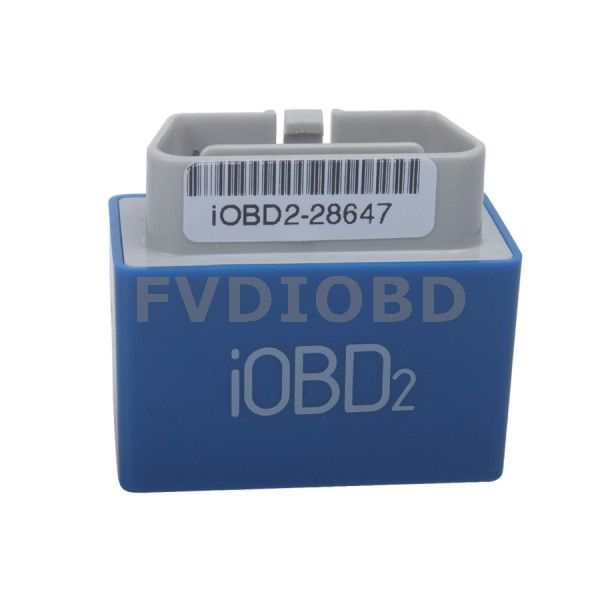

iOBD2 VW is a car diagnostic tool designed for VW series cars. It communicates with Android devices via Bluetooth. It can diagnose all the electronic control systems of VW series cars.

 iOBD2 VW  Feature and Functions:



iOBD2 VW functions include Oil Reset, Oxygen Sensor Test and Reset, Read Mileage etc.

It is compliant with both OBDII and EOBD. iOBD2 reads therecordingdata by the client software on the smart phone. When the car is driving,

it collects the data of all systems and displays them by charts or graphics. The data can also be shared to Facebook and Twitter.

Menus
 [Connections] Connect iOBD2 with the phone and the car.

[Expert Diagnosis] Automatically identify the systems of the car and diagnose the systems in detail.



[Service Reset] Advanced functions such as Oil Reset, Oxygen Sensor Test and Reset and Read Mileage.[History] Review the saved testing data of the tested cars.

IOBD2 Functions:

1. Expert Diagnosis: Diagnose all the electronic control systems of VW series cars.


 01- Views vehicle information


 02- Reads trouble codes stored in engine and shows detailed trouble codes information.


 05- Clears trouble codes


 08- Reads all running parameters related to ECU system.



2. Reset Service

[Oil service light reset]  After changing the oil of the car, reset the oil service light.

[VW cars oxygen sensor maintenance and reset]  After the car running a certain number of miles,the dashboard will display a warning to maintain or replace the oxygen sensor/EGR valve. Reset the oxygen sensor/EGR valve service light after replacing the oxygen sensor/EGR valve.

[Odometer] Reads mileages.



3. History

This function is to store and review the saved diagnostic data of the tested cars, such as live data, freeze frame data and my dashboard data.

4. One Click To Roll Up Windows

[One click to roll up windows] When the car turns off, close all doors(including the engine hood and trunk lids). Then press [One click to roll up windows] and it will automatically rolls up the windows that are not well closed, protecting the car fromrain orstealing.

 Note: At present, this function is only available on car models as Volkswagen Magotan. More car models will be covered in near future. Please pay attention to the notice on the iOBD2 official website.
 5.Information


 Press  button to refer more information on iOBD2 or give us a feedback.

iOBD2 VW AUDI Technical Specification:

Operatin temperature: 0~50°C

Storage Temperature: -20~70°C

Relative Humidity: < 90%

Input Voltage: 8~18VPower:



iOBD2 VW Package List:

iOBD2MFi BT Bluetooth adaptor

iOBD2-VW app(Download from Google play)

User Manual
