BMW ICOM NEXT A + B + C NEW GENERATION OF ICOM A2
Why choose BMW ICOM NEXT:
ICOM NEXT is faster and handles multiprogramming and coding quite nicely. Gets the job done much faster if you are flashing the complete vehicle.
Also it will be able to handle future vehicles better.BMW ICOM Next highlights:
1. Latest BMW ICOM Next Diagnostic tool support full systm diagnosis, coding for BMW, MINI, Rolls-Royce BMW-Model
2. With same functions and appearance with the original BMW ICOM Next
3. Support WiFi ConnectionTips on using BMW ICOM Next:
1. There is no software hard disk inside this package, if you need, please choose latest BMW ICOM Software HDD, this software support BMW cars till year 2017.
2. If you want to use the BMW ICOM Next on BMW Motorcycle, you can buy BMW ICOM D Motorcycles Diagnostic Cable
extra, with the help of this cable, you can work on BMW Motobikes till year 2016.
3. If you want us to install and set the software well, directly to use, you can choose BMW ICOM Next Wireless Diagnostic Tool plus Lenovo T410 Laptop Combination Kit
Improved Functionality and Performance:
1. Gbit workshop LAN, backwards compatible
2. Preparation for Gbit LAN on vehicle OBD(cars do not yet support this and interface not yet defined,ICOM Next hardware adaptation will be necessary for future Gbit car interface,will cause adaptation costs)
3. Faster start-up time and high throughput
4. Through high-performance, low-power ARM SoC
5. Improved handling
6. More flexible OBD cable
7. Lighted button for logs etc

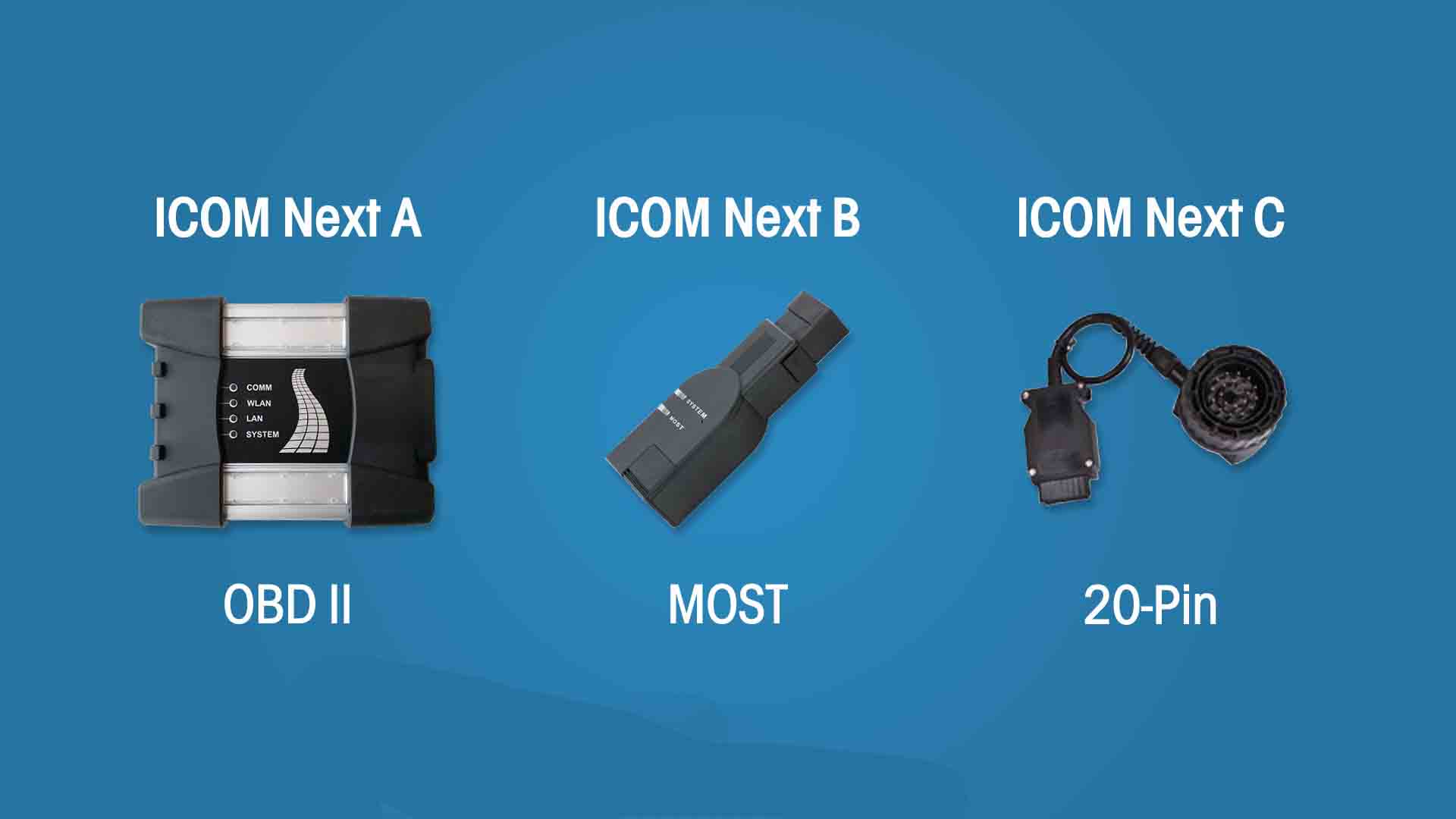

ICOM NEXT A+B+C Diadnostic Head Overview:
Share the same functionality as ICOM A2
ICOM NEXT A+B+C with WIFI is a redesign of ICOM A2+B+C
Backwards compatible to car adapters (ICOM B, C) and motorcycle adapters (ICOM D, E)
ICOM NEXT ABC Specifications:
Zeroization of data on tamper detection
Secure supply chain assurance
Key storage using physically un-clonable function
CRI Pass-Through DPA Patent Portfolio
Advanced cryptographic Services
BMW Software Compagible wirth ICOM Next A:
ISPI NEXT—BMW ISPI NEXT is latest generation after service tool for BMW, these brief instructions describe the basic functions of the AIR application (Aftersales Information Research) in Service. For the Diagnostic, it use IPSI (Rheingold) and ISPI Next for Coding Programming functions.
ISTA/D— Integrated Service Technical Application Diagnostic. ISTA/D is used to diagnose BMW all series and models from all systems.
ISTA/P— Integrated Service Technical Application/Programming. ISTA/P is used to process all coded, programmed and enable-dependent control modules in BMW Group vehicles.
Rheingold—Diagnostic and repair guide, including Diagrams and disassembly Figure
KSD—BMW KSD (Kaufmännische Service Daten, i.e. Commercial Service Data) is a collection of invaluable data for determining labor hours, inspection sheets and general service methods. There’s also information about wheels and rims for the various models.
EasyConnect— Used to Configure the Environment Parameter of Engineer Software for E series, can activate or release ICOM Port
IToolRadar— Used to recognize ICOM, activate or release ICOM Port
ETK— Accessories Catalog
EDIABAS Tool32— Engineer Software for E series, able to run directly
INPA— Engineer Software for E series, for diagnosis
NCS Expert Tool—- Engineer Software for E series, for coding
WinKFP—Engineer Software for E series, for programming
E-sys — Engineer Software for F series (available for programming and coding)
BMW Standard tool
Coding ToolHow to use BMW ICOM NEXT?
1.Connect the car with icom or icom a2;
2. Connect the icom lan-cable with the computer when the system light stop flashing.Otherwise, the icom ista-p program will shut off automatically if you have firstly connected the device with the computer directly.
Expert Mode with NCS, E-SYS and so on
Eeay to install...only thing you need to do is insert it into laptop!!!
No need dongle
If you need to do programming job, please make sure your laptop has 4GB ram at least.How to Update BMW ICOM NEXT Firmware?
First, install ISTA-D software on your system so you can use it to install the firmware on your ICOM.
Next, start ISTA-D with ICOM connected to your car (Don’t need KL15, KL30 13.8V on pin 16 and ground on 4+5 is enough)
Then, go to connection manager and start the update.BMW ICOM NEXT Reviews:
ICOM Next is faster than the old bmw icom. It is also better built IMHO.
And 2017 Next is WIFI available also.
It handles multiprogramming and coding quite nicely.
Gets the job done much faster if flashing the complete vehicle.
Another benefit to Next will be compatibility for future cars.BMW ICOM NEXT and Connections

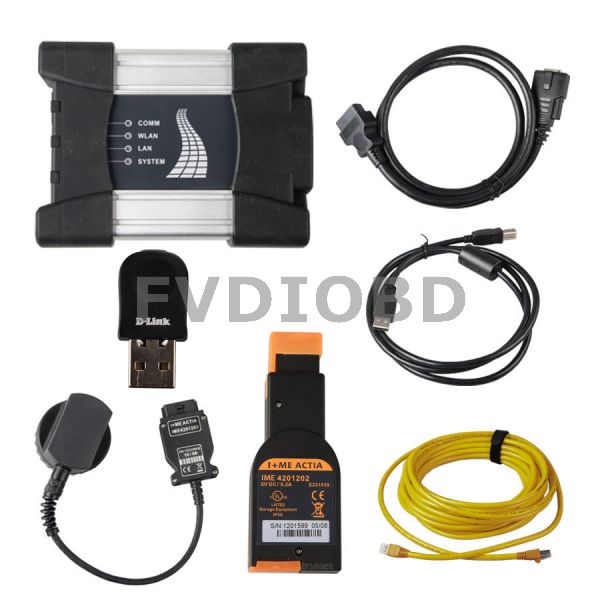

1pc x BMW ICOM NEXT A+B+C
1pc x BMW ICOM B Most
1pc x BMW 20pin Cable
1pc x USB Cable
1pc x LAN Cable
1pc x OBD Cable
1pc x Optical fiber
